Tip of the Week: Making Callout Arrows Easier to See

Got arrows or callout lines that are almost invisible over a dark background? Here's an easy fix.

This tip was sent to Tip of the Week email subscribers on March 3, 2016.

InDesignSecrets Tip of the Week

Sign up now and every week you’ll get a new InDesign Tip of the Week and Keyboard Shortcut of the Week, along with roundups of new articles at InDesignSecrets, plus exclusive deals sent right to your Inbox!

Just scroll all the way down to the bottom of this page, enter your email address, and click Go! We’ll take care of the rest. Now, on with the tip!

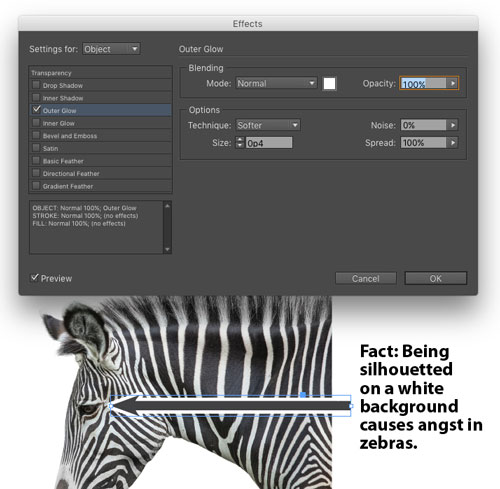

You’ve turned a line into an arrow using InDesign’s Strokes panel. But perhaps you can’t see the arrow clearly over a dark background, so you want to add a small white outline. Unfortunately, you can’t add two stroke colors to one object in InDesign. So cheat a little and add an Outer Glow effect instead! This creates the appearance of a dual stroke. You’ll probably want to set the blending mode to Normal and Opacity to 100%. To remove the fuzzy edge on the glow, change the Spread value to 100%.

20160303-totw1
